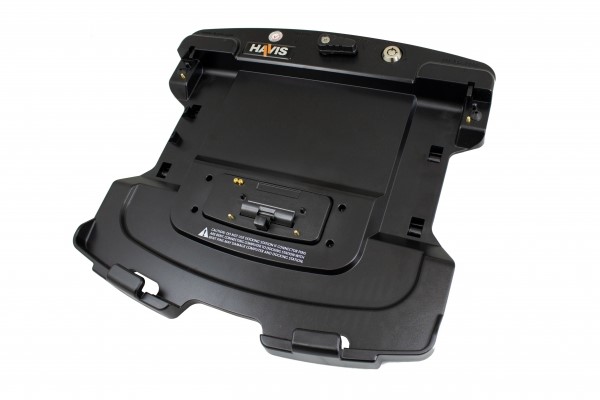

Havis Vehicle Dock - Panasonic Toughbook FZ-55
Havis FZ-55 Vehicle Dock Owner's Manual
Product Details:
- Docking station for Panasonic's TOUGHBOOK 54 and 55 rugged laptop
- Panasonic Toughbook Certified.
- Accommodates all TOUGHBOOK 54 and 55 models, providing access to bottom smartcard reader while computer is secured in docking station
- Increased connector protection via retractable cover that protects pins when device is absent
- Backwards compatible with Panasonic Toughbook CF-54 for existing fleets
- Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable management
- Integral mounting provided for the addition of Havis rugged Communications hub, which allows user to expand connectivity
- Floating, guided docking connector maintains safe and secure connectivity
- Low profile design maximizes available space inside of vehicle
- Rounded corners and edges are ideal for your safety in accidents and airbag deployment, in addition to daily use and operation of docking station
- Supplied mounting bracket designed to fit all Havis mounting equipment as well as most competitors' mounting equipment
- Lock and key supplied for peace of mind theft deterrence
Specifications:
- Compatible computer: Panasonic TOUGHBOOK FZ-55 semi rugged notebook
- Dimensions: 38.4 cm x 34.8 cm x 7.6 cm
- Certifications: Vibration Testing: MIL-STD 810G 514.5, crash test: SAE J1455 30mph Crash Testing, cycle test: latch handle & docking connectors mechanism 30,000 cycles, environmental testing: hot/cold operational & storage
- Connectivity includes:
- USB: fully-powered USB Type 3.0 (2)
- Serial RS 232 (1)
- VGA (1)
- HDMI (1)
- Ethernet: RJ45 Ethernet (1),
- Input voltage: 15.6 vDC,
- Optional High Gain Dual RF Pass Through
